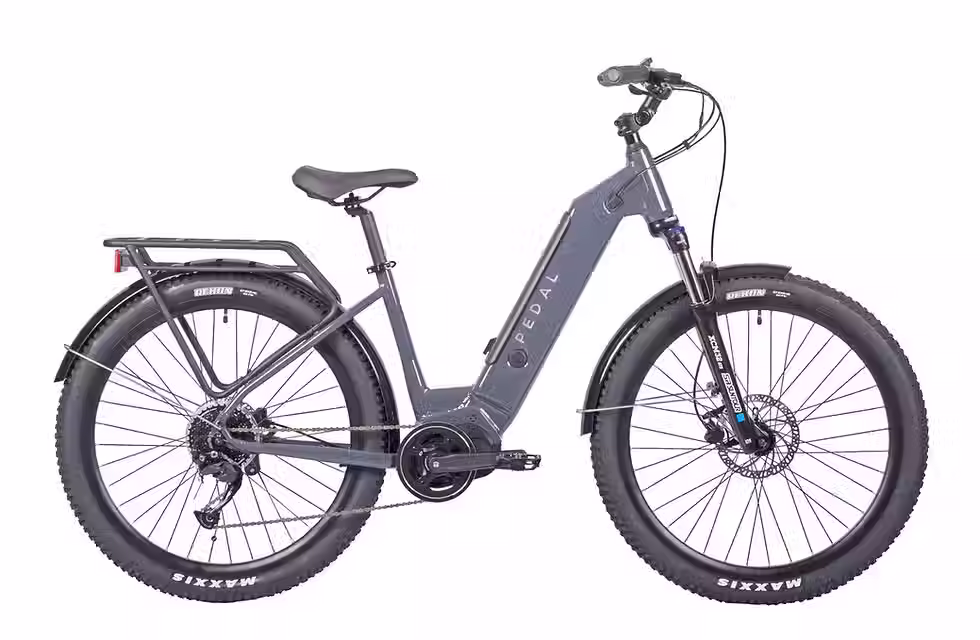

New for 2024, the Lynx 3 Step Through introduces a number of refinements. Perfect for a commuter or all-rounder who can't justify German-brand money, the Lynx provides a great “do it all” approach to ebike life, by providing mid drive refinement and a decently sized battery at an industry leading price point. New Frame and new geo - upright, comfortable and equipped! New charge port - 3 pin type, safer and more durable. M81 motor with 80Nm torque available from nice low crank RPM and suited well to a rider who doesn't like high cadence D18 smaller more discreet colour display CANBUS communication technology, which will allow for future Bluetooth and IOT integration options (as well as improved diagnostics from display to battery). Bluetooth and WiFi currently not available. Pedal will provide information regarding availability of these functions when they are available. | ACCESSORIES | Kickstand, 42V 2A Charger (3 pin for 36V Battery), HD 4 bolt pannier rack |
|---|
| BOTTOM BRACKET | Ananda |
|---|
| BRAKES | Tektro HD-M275 |
|---|
| CASSETTE | Shimano Wide Ratio 9 Speed |
|---|
| CHAIN | Shimano 9 Speed |
|---|
| CRANKSET | Ananda 38T Narrow Wide 170mm Square Taper Alloy |
|---|
| DERAILLEUR REAR | Shimano 9 Speed |
|---|
| FENDER | PVC for 27.5 x 2.4" Tyre w/suspension fork clamps |
|---|
| FORK | Suntour XCM32 Coil QR |
|---|
| FRAME | Step Through Alloy 6061 Removable Battery |
|---|
| GRIP | HL-G315 L/R:136.5MM, CLOSED END,ALLOY LOCK |
|---|
| HANDLEBAR | W:680MM, R:28MM, BACKSWEEP:30D,BARBORE:31.8MM, |
|---|
| HANDLEBAR STEM | A HEAD, EXT:105MM H:41MM,BAR BORE:31.8MM,ED BOLT |
|---|
| HEADSET | A HEAD,28.6MM,44*56MM,W/15MM RESIN BLACK CONE, H=20MM |
|---|
| HUBS | F: SF-A262F 36h QR 100mm 6 bolt LBB / R: SF-A262R 36h QR 135mm 6 bolt LBB |
|---|
| PEDALS | 9/16 Platform Resin |
|---|
| RIM | RD-H30 27.5"*36H*14G, DOUBLE WALL, F/V W/EYELETS |
|---|
| ROTOR FRONT | 180mm 6 bolt |
|---|
| ROTOR REAR | 160mm 6 bolt |
|---|
| SADDLE | SELLE ROYAL 4007HRN SPORT ERGO |
|---|
| SHIFTERS | Shimano 9 Speed Trigger |
|---|
| FEATURES | <ul><li>250W mid-drive motor</li><li>Removable 468Wh battery</li><li>Up to 70km range</li><li>Shimano 9-speed drivetrain</li><li>Tektro hydraulic disc brakes</li></ul> |
|---|
| MOTOR/DRIVE UNIT | Ananda M81 CAN Mid Drive 250W 25KPH 36V 25KPH |
|---|
| MOTOR BRAND | ANANDA |
|---|
| MOTOR POWER (WATTS) | 250 |
|---|
| MOTOR TORQUE (NM) | 80 |
|---|
| BATTERY | Removable Downtube style CANBUS w/Internal BMS |
|---|
| BATTERY SIZE (WATT-HOURS) | 468 |
|---|
| EBIKE DRIVE SYSTEM | Mid Drive |
|---|
| DISPLAY | D18 + CAN |
|---|
| CHARGE TIME (HOURS) | 6 |
|---|
| ASSIST MODES | 5 Modes |
|---|
|
